FlexLine PLUS steam generators
high-quality, low-maintenance and durable.

As part of the FlexLine series, a new generation of steam generators, the HygroMatik FlexLine Plus Spa units can be flexibly expanded from a basic model with appropriate options. Every generator can thus be optimally adapted to the individual requirements of a project.

Advantages for project planning

• • Reduction of installation complexity by means of individual pre-configuration ex factory
  • Optimum connection to the building management system
  • Optional Modbus or BacNet
  • Retrofittable with optional expansion options
  • You only invest in the functions you really need

Equip HygroMatik FlexLine Plus Spa with the power you need for optimum steam output. 7 performance classes with steam output from 5 kg/h to 50 kg/h selectable in one unit size. In addition, individual performance adjustments can be programmed both at the factory and on site.

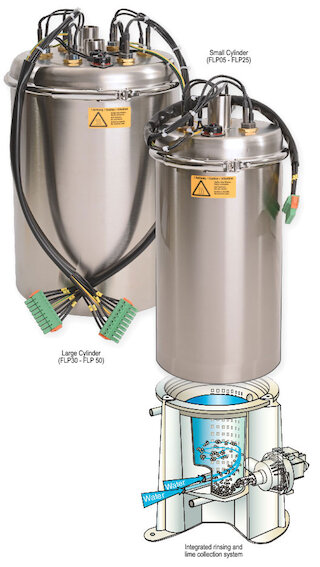

When operated with softened or tap water, the minerals and salts contained in the water precipitate. These deposits are stirred up by the integrated rinsing and lime collection system during partial blowdown and can be removed by the powerful blowdown pump. The amount of particles accumulated in the strainer is thus significantly reduced.

• • The combined rinsing and lime collection system is integrated in the unit and ensures compact dimensions for HygroMatik FlexLine Plus Spa
  • Robust removable strainer allows easy removal of hardeners
  • Plug connections, cylinder clamping ring and steam hose adapter enable fast and easy maintenance

All HygroMatik FlexLine Plus Spa units are equipped with a capacitive 3.5“ touch display. Operation and programming are selected via a flat and intuitive menu structure analogous to modern smartphone logic. In addition to this, subsequent software updates are quickly and easily possible via USB flash.

The improved control and regulation technology of the HygroMatik FlexLine Plus Spa units provides extensive possibilities that are simple and easy to operate.

• • Highest regulating accuracy and top protection against excessive temperatures by means of second supply air and ventilation steam bath fan
  • The option of up to 4 different lighting scenarios
  • Flexible switchover of up to 4 essences without changing containers
  • Freely programmable, overload-protected digital input
  • Integrated communication protocol Modbus RTU or BACnet
  • Numerous control and reporting functions can be assigned to up to 11 relays depending on the unit

HygroMatik FlexLine Plus Spa has been developed, like all our products, for particularly long operating times. The units are characterised by technologies that, in addition to the maintenance effort, minimise the wear of unit components and use energy and resources in a highly efficient manner.
