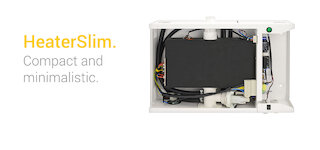

Compact and minimalist.

Slim device dimensions for private and suite spas.

HeaterSlim steam generators.

HeaterSlim steam generators
compact and minimalistic.

The heater steam generator HeaterSlim has an appropriate design, is slim in size and comes with output of 6.6 or 10 kg/h, making it particularly suitable for private and suite spas.

All advantages at a glance.

- Excellent access to components saves time in installation and maintenance.
- The units can operate using fully demineralised, softened or mains water. When operated with fully desalinated water, the units are practically maintenance-free.
- The units are environmentally-friendly, efficient, hygienic and safe. The produced steam promotes health and well-being.
- The HeaterSlim can be digitally controlled, read out and parameterised using the integrated Modbus RTU communication protocol.

  The units feature the VDE and GS test marks and conform to CE and EAC.

air humidification steam generator steam spa wellness @

Product description

Your safety is our priority.

The water is heated in the energy-efficient insulated stainless steel cylinder using an immersion-type heater. The HeaterSlim guarantees absolute process safety by level measurement using sensor electrodes. The mechanical overheating protection of the heater and electrical level control provide highest possible safety in operation. The cabinet can be locked and thus protected against unauthorised access.

Hygienically perfect.

The HeaterSlim produces mineral-free, hygienic steam for your well-being and health.

Flexible connections and performance.

The HeaterSlim can be flexibly deployed using the unit's 230 V or 400 V connections. Thanks to easily removable heater elements HeaterSlim offers you two performance classes in one device size.

Simple maintenance - Reusable cylinder.

The HeaterSlim can be installed in confined corners and still offers ideal component access. For maintenance purposes the cylinder can be easily removed without special tools. Also the heater elements can be simply taken out and cleaned. If the heater element steam generator is operated with fully demineralised water, there will be almost no deposits and the maintenance requirement is minimal.

Easy usability with the Spa Touch Control. (optional)

The HeaterSlim is optimally designed for the use with the Spa Touch Control.
With the external, permanently installed 5" touch display, temperature, fragrance and light in the steam bath can be easily and conveniently controlled.

- Display surface with IP65* protection class
- Robust capacitive 5" touch screen display
- Resolution 800 x 480, 65k colours
- Scope of functions can be configured (target temperature, fragrance, etc.)
- Real time clock with running time and timer program
- High operational reliability due to indication of maintenance and fault messages of the steam generator

*Protection class IP65 of the installation requires an appropriate wall sealing provided on-site.

Applications

Spa and wellness

steam humidifiers for wellness facilities @

Spa- and wellness facilities.

In spa- and wellness facilities, a regulated heat and hygienic steam ensures clean, healthy air humidity which helps guests focus on relaxation, rejuvenation and their well-being.

gym fitness room with regulated air humidification @

Fitness clubs.

Relaxing in the spa area after a strenuous fitness workout brings the body back into balance. Steam facilities combined with a healthy atmospheric environment play an important role during the recovery process.

air humidification in the wellness area on cruise ships @

Cruise ships and offshore.

An extensive spa and wellness service is standard on modern cruise ships. Steam use is becoming increasingly popular on offshore platforms too. This requires particular technology demands.

Downloads

Brochures

HeaterSlim – heater type steam generators

Brochure

Öffnen Speichern

HygroMatik ServicePlus – Sustainable. Digital. Personal

Service brochure

Öffnen Speichern

Spa Touch Control
(5 inch touch display)

Brochure

Öffnen Speichern

Steam Bath

Accessory Abstract

Öffnen Speichern

Steam Generator Accessories

Flyer

Öffnen Speichern

Temperature sensor

Brochure

Öffnen Speichern

Specifications

HeaterSlim specification

Heater Type Steam Generators

Öffnen Speichern

Manuals

HeaterSlim manual

Öffnen Speichern

Spa touch control

Öffnen Speichern

Functional principles

HeaterSlim spa principle

Öffnen Speichern

Maintenance videos

HeaterSlim maintenance (Spa)

Öffnen Speichern

3D models

HeaterSlim

all sizes, 3D PDF

Öffnen Speichern

HeaterSlim

all sizes, STEP format

Öffnen Speichern

HeaterSlim

all sizes, IFC format

Öffnen Speichern

Drawings

HeaterSlim

all sizes, DWG format

Öffnen Speichern

HeaterSlim

all sizes, PDF

Öffnen Speichern

HeaterSlim

all sizes, DXF format

Öffnen Speichern

Technical Data

Technical Data HeaterSlim

Öffnen Speichern
